This article discusses how to filter files. The article contains four sections.
- Filtering by file name.
- Filtering by file extension.
- Filtering by folder.
- Turning the filter on and off.
Filtering by filename
You can filter all files in a project that has specific letters for example "yyp". Use the search field. The filter will retrieve all files that contain those three letters in any part of the file name. Special characters such as a percent sign are not required. The filter also searches for upper and lower case letters.
Filtering by file type

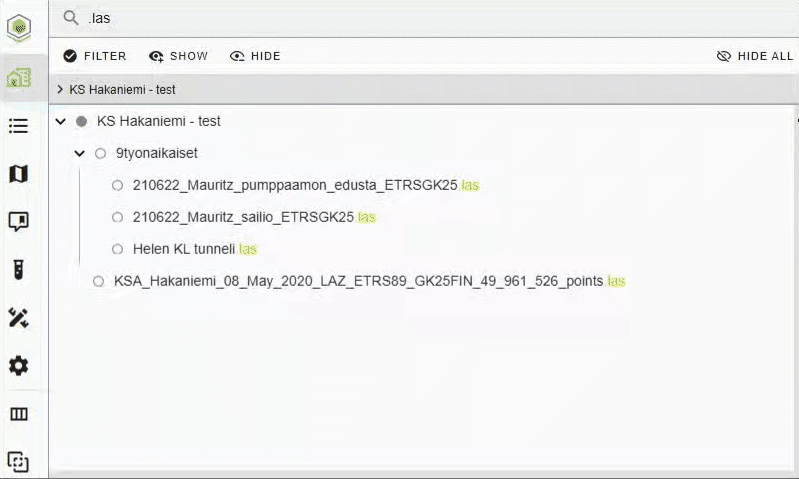

You can also search with the file type. For example, surface models and alignment lines by searching .xml or point clouds by searching .las. Note that the search results between .las and las may differ.
.las searches on file extensions.
las searches file type that are .las but also files that has letters las e.g. Lassilan_worksite_file.dwg or vaahtolasikevennys.
Filtering by folder

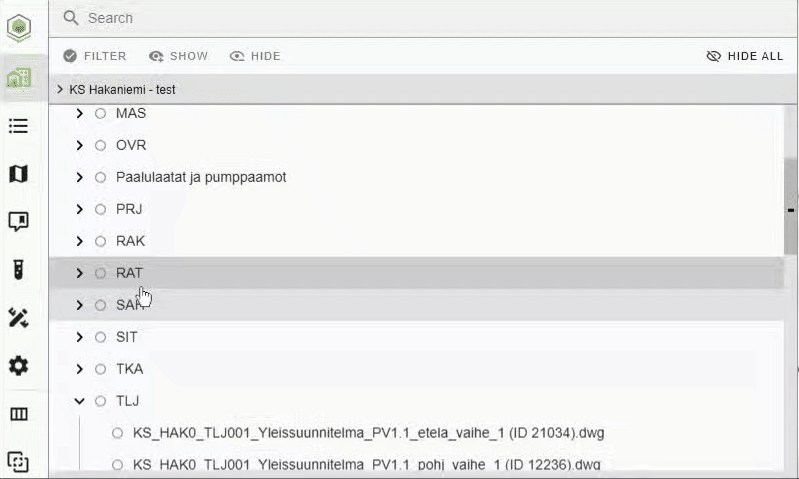

You can use the filter within a folder, so that the filter only targets files within the folder. Navigate to the folder, e.g. RAT.
Type in the filter you want to use e.g. ifc files.
The filter will only display the ifc files contained in the RAT folder.

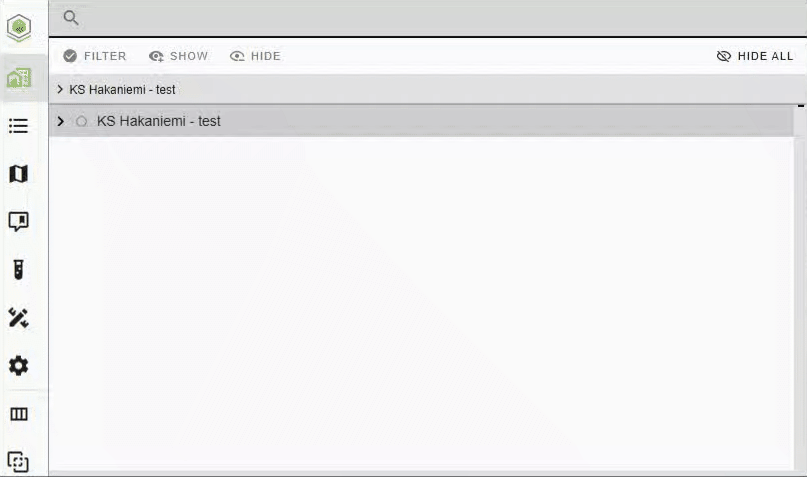

Switching the filter on and off
Filtering can be switched on and off by pressing the Filter button below the search field. This will change the filtering of the file list to on and off.
Advanced File Search
You can refine file searches by adding conditions for what must be included or excluded.
SPACE = OR

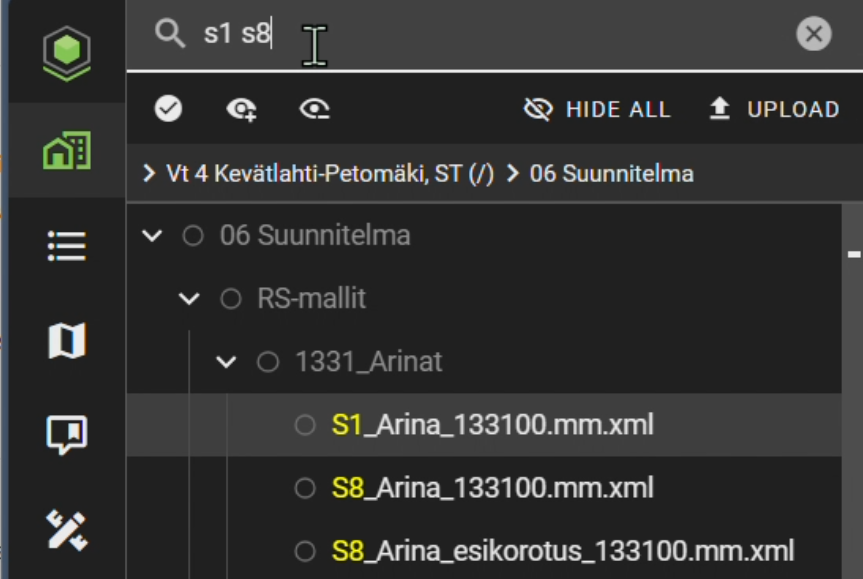

Example: S1 S2 → Finds files containing either S1 or S2.
+ = Must include

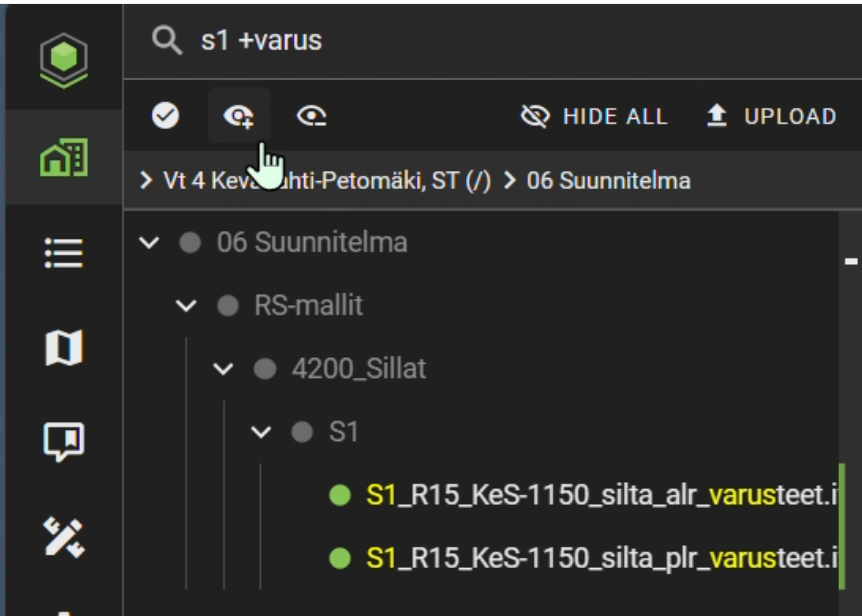

Example: S1 +varus → Finds files that contain S1 and varus.
- = Must not include

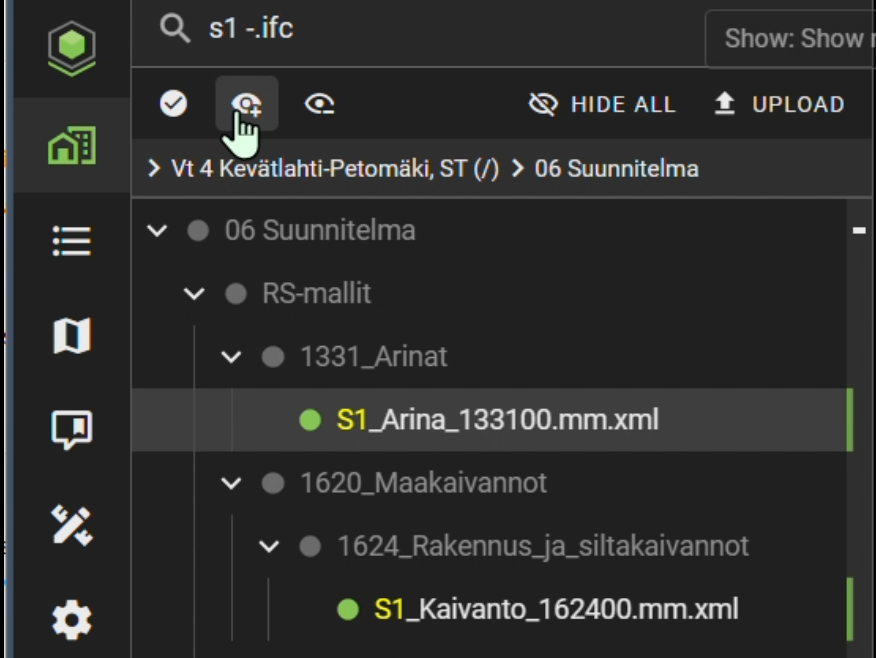

Example: S1 -.IFC → Finds files related to S1 but excludes all IFC files.
Combining Searches
You can mix operators to build more precise queries.

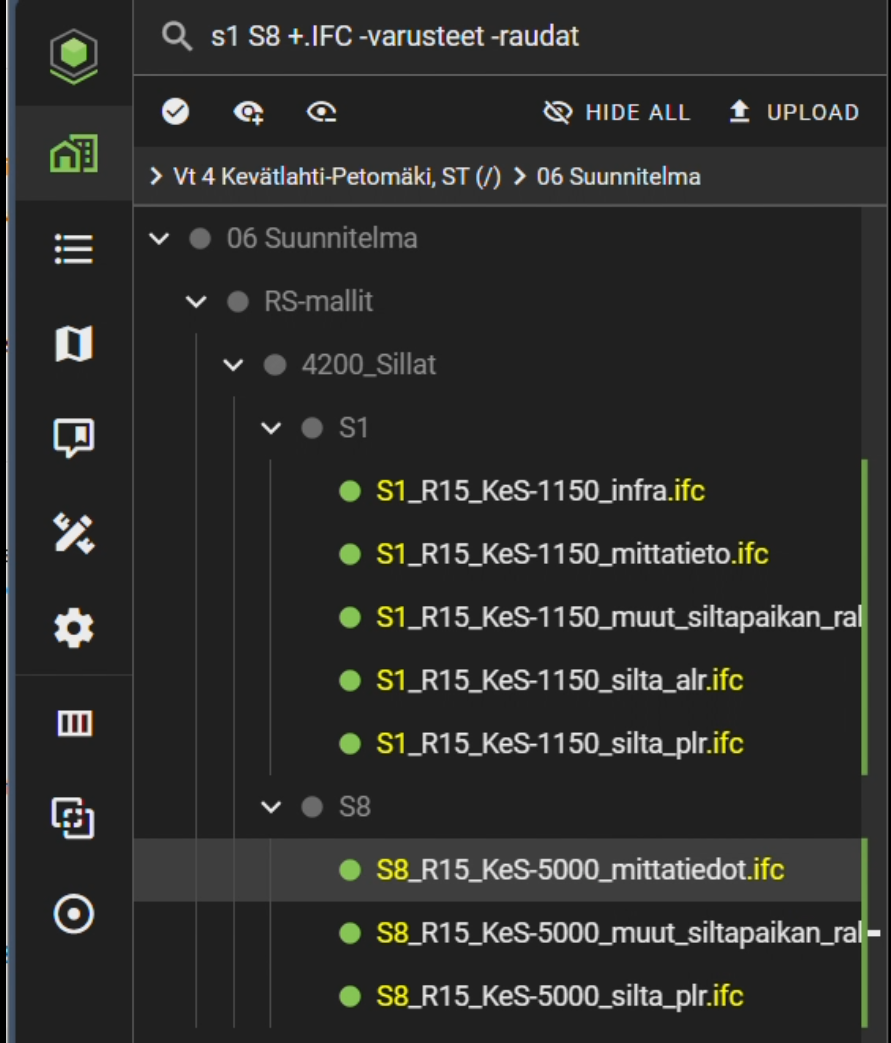

Example:S1 S8 +.IFC -varusteet -raudat
→ Finds files that contain either S1 or S8, the file format is IFC, but the name does not include varusteet or raudat .
