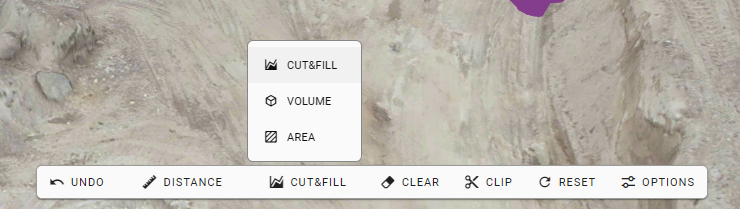

Cut & Fill Tool

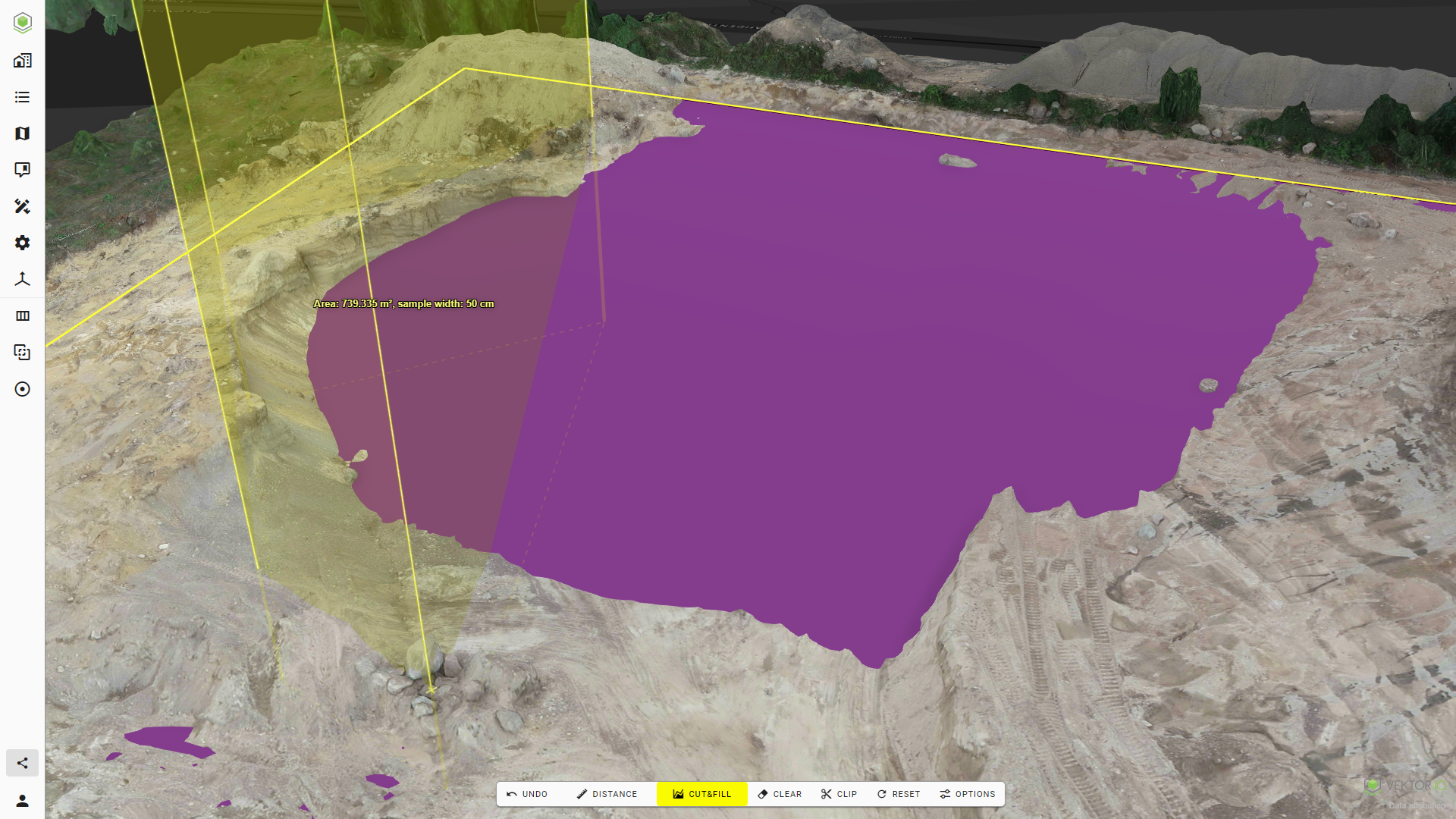

Define the calculation area

Define the area where volumes will be calculated.

• Click the left mouse button to set corner points

• Close the area by clicking the right mouse button

The calculation is performed:

• within the user-defined area, or

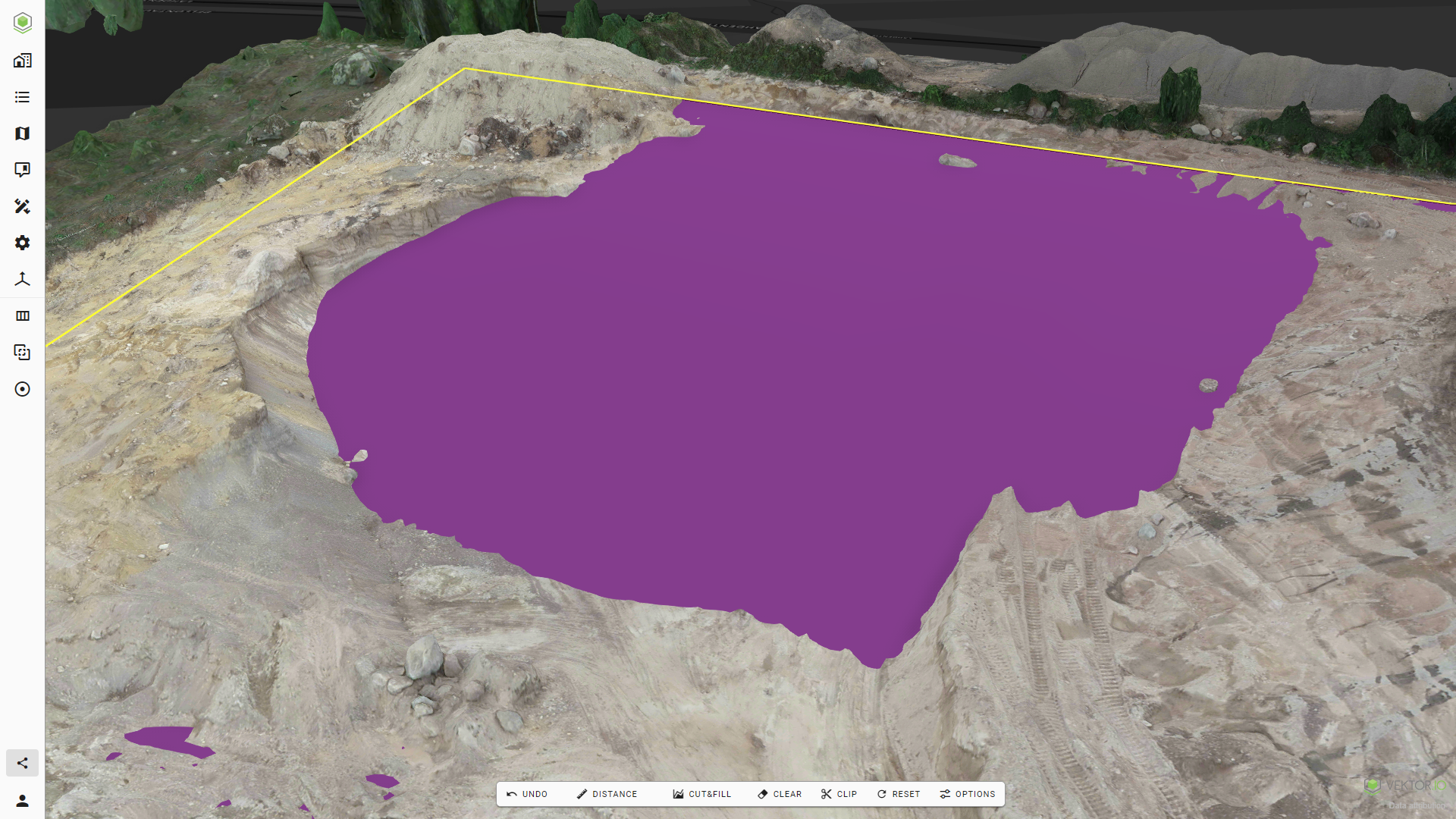

• automatically based on the reference surface boundaries


4. Volume calculation and visualization

Once the area is defined, Vektor.io:

• automatically starts the calculation

• calculates both cut and fill volumes

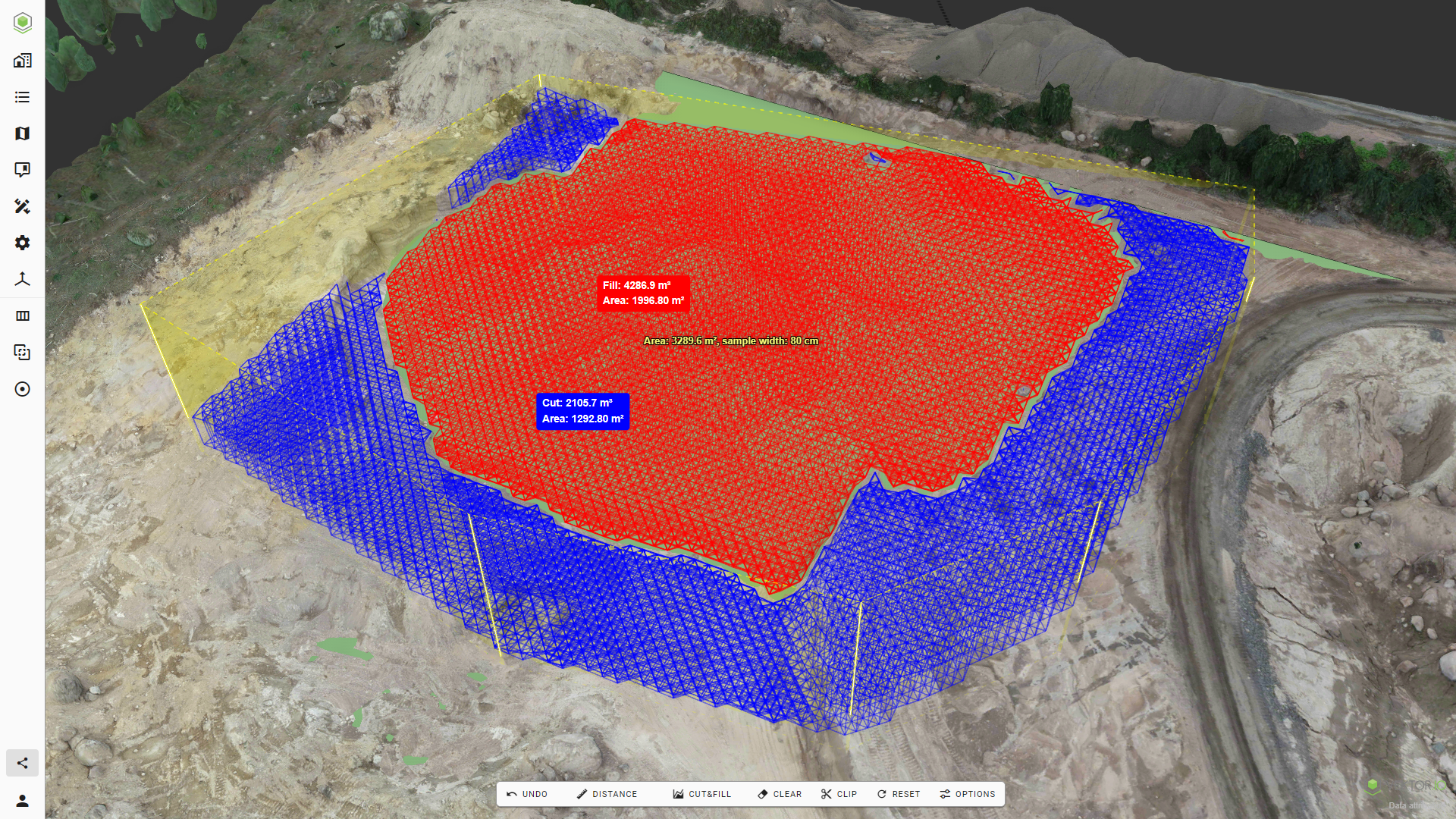

The results are visualized in the view:

•  Cut areas are shown in blue

•  Fill areas are shown in red

This visualization makes it easy to interpret the results.

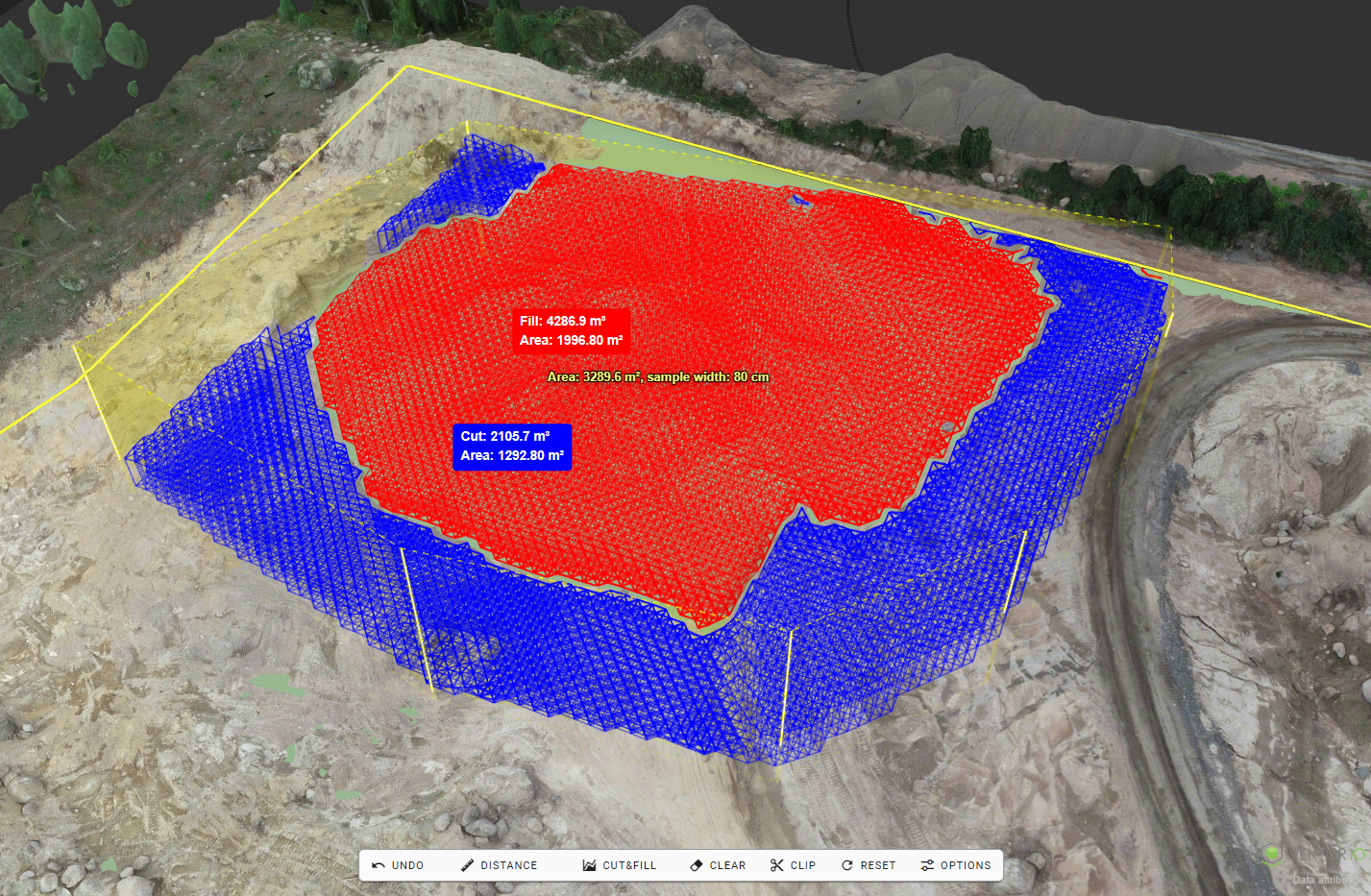

5. Results

The results include:

• surface area

• cut and fill volumes (m³)

The Sample width value indicates the size of the calculation cubes used:

• larger areas use a larger sample width

• smaller areas use a smaller sample width

The value affects calculation accuracy and adjusts automatically based on the area size.

6. Saving the results

We recommend saving the results to the view so that:

• they can be reviewed later

• the data can be reused for planning or reporting purposes
